Produktdetails

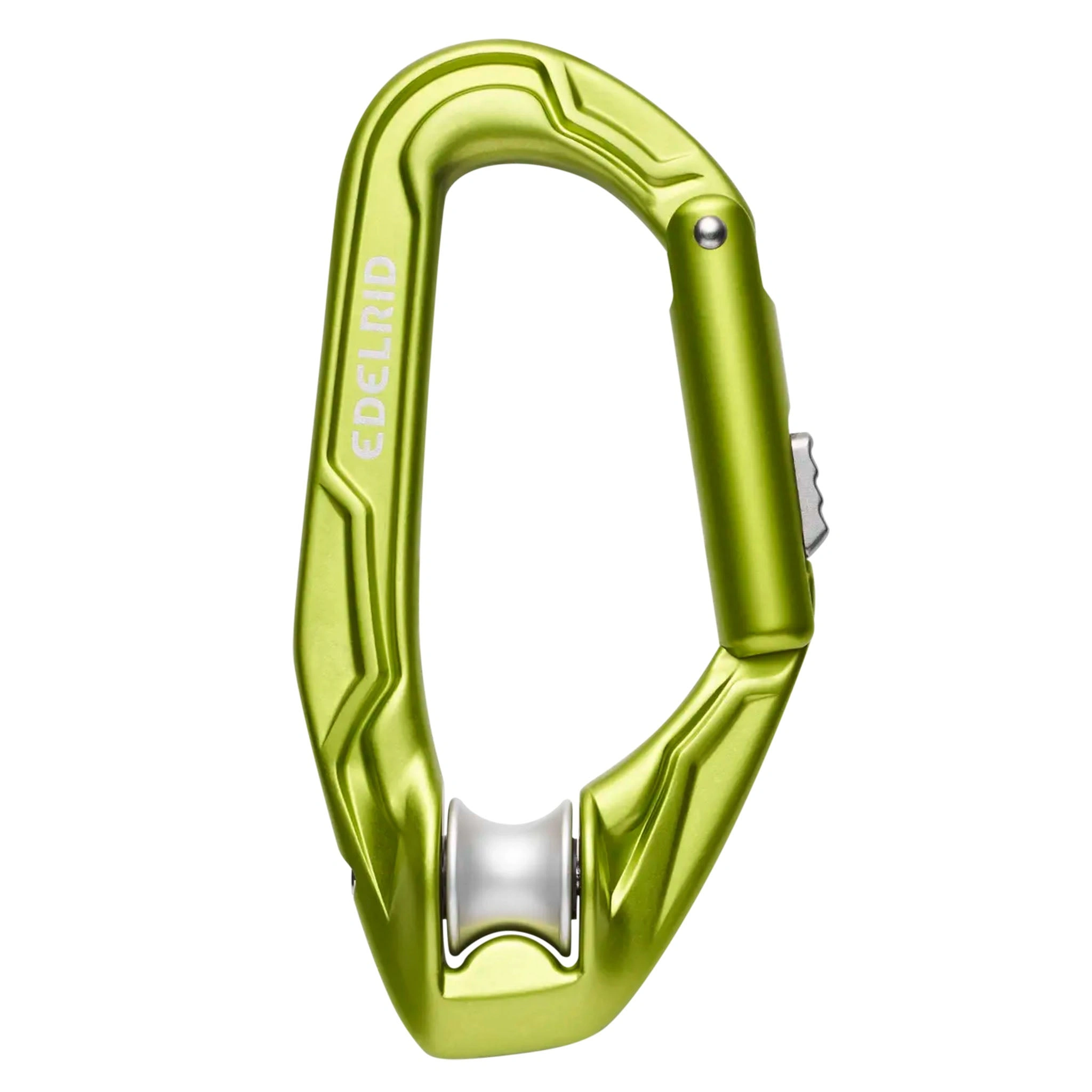

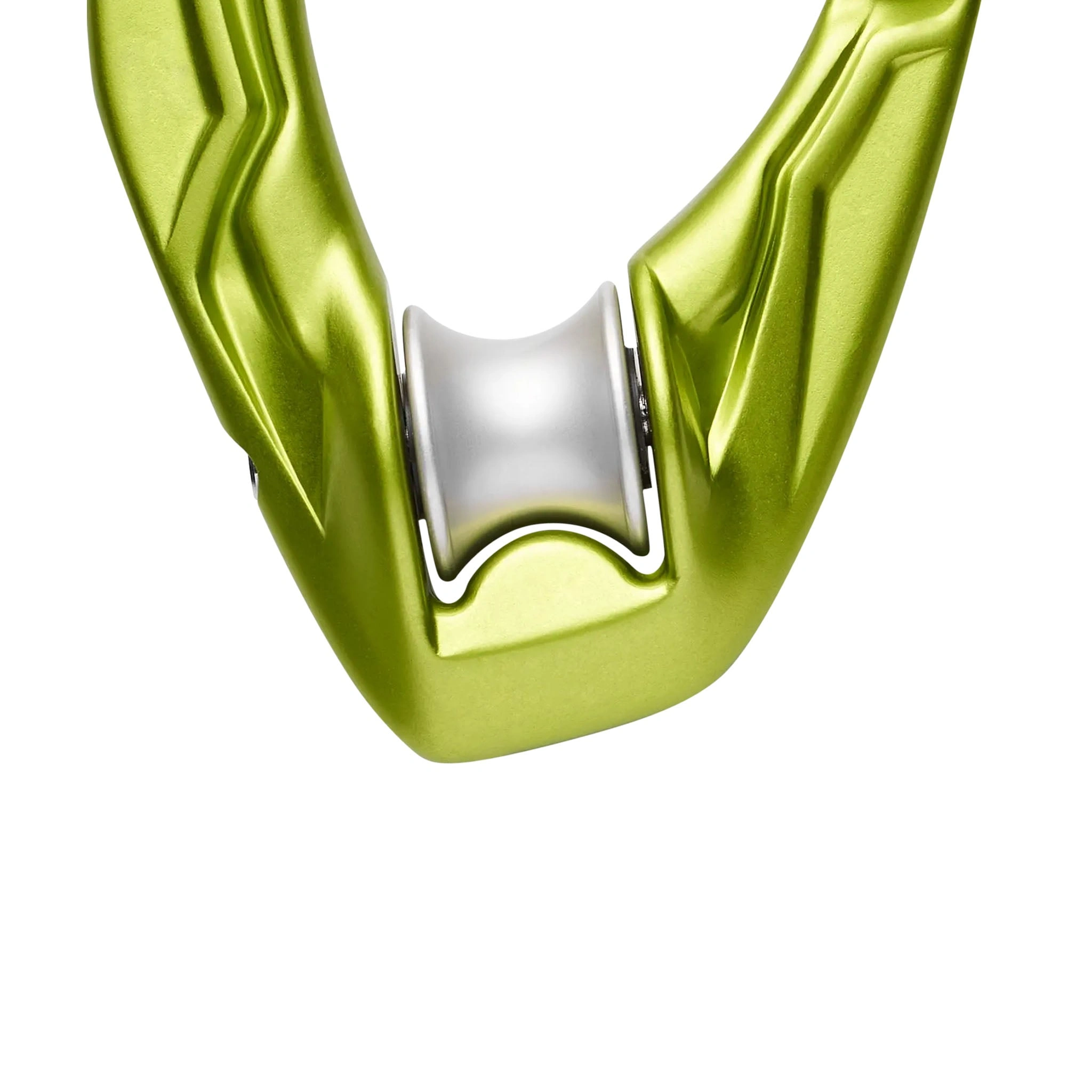

The pulley reduces rope friction to a minimum and the pulley maintains its function even under load. The optimized design of the AXIOM ensures that the rope is always ideally guided so that the rope can always run on the pulley. Available with a classic gate or the automatic and very compact SLIDER locking gate. The gate opens on the pulley side which makes installing the rope easier.

Features

• Very lightweight construction
• Pulley maintains its function even under load.
• Optimized design for perfect rope guidance in the carabiner at all times
• Efficiency: 86%

Specifications

• Width: 65 mm
• Length: 100 mm
• Gate opening: 18 mm
• Fmax. major axis: 22 kN
• Fmax. minor axis : 8 kN
• Fmax. open: 7 kN
• Certification: EN 12275
• Certification: EN 362
• Material: Aluminium
• Closure: Slider
• Carabiner shape: Axiom
